Wind Barbs Request
You only need to specify this style URL in your client and it will automatically know what other URLs request for other resources such as vector tiles and wind barbs icons:
https://api-mm.ncm.gov.sa/mvt/barbs/<parameter>/style.json?<optionals>Only wind speed in knots are supported, for example:

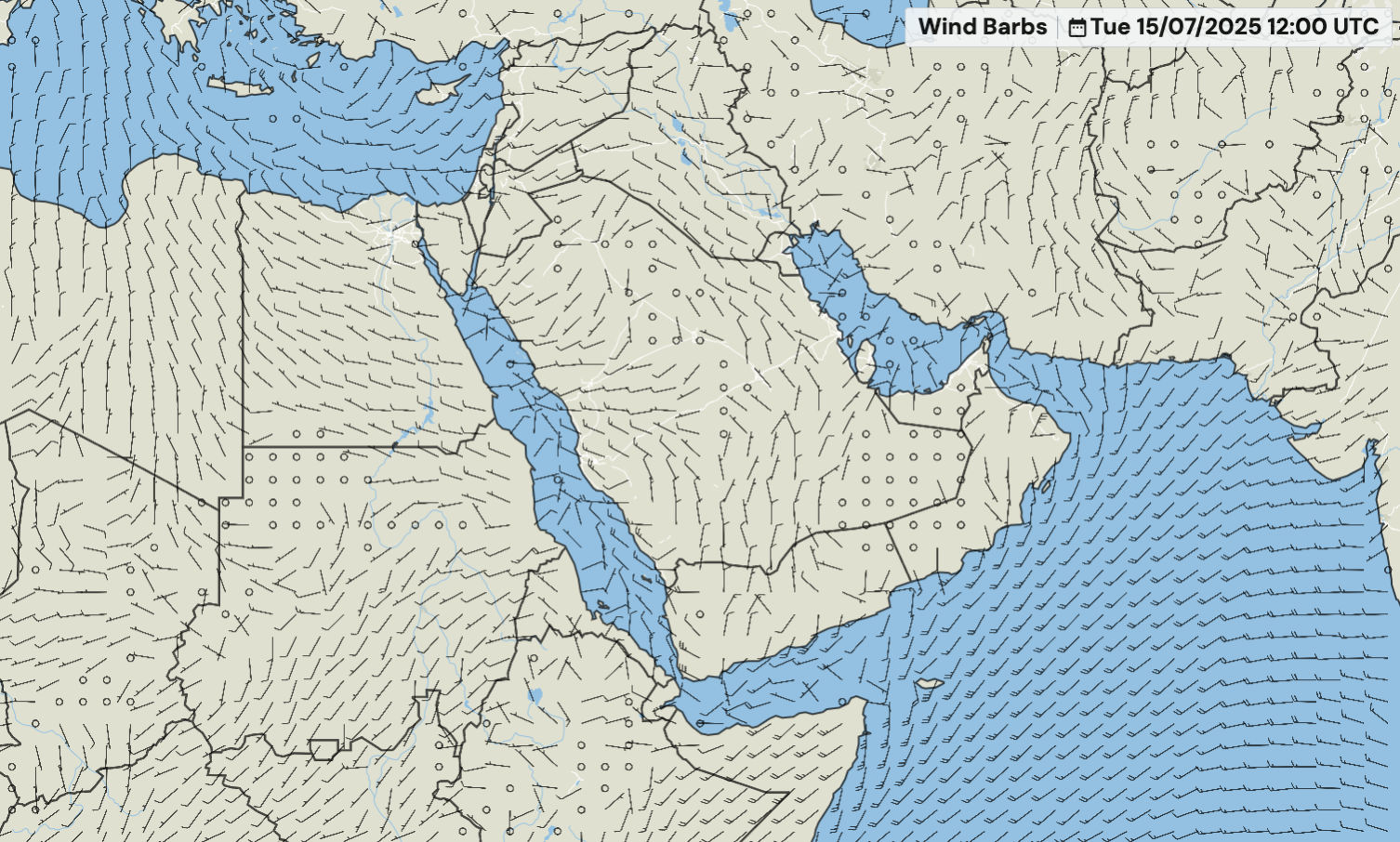

For example, below is the result for https://api-mm.ncm.gov.sa/mvt/barbs/wind_speed_100hPa:kn/style.json?datetime=now

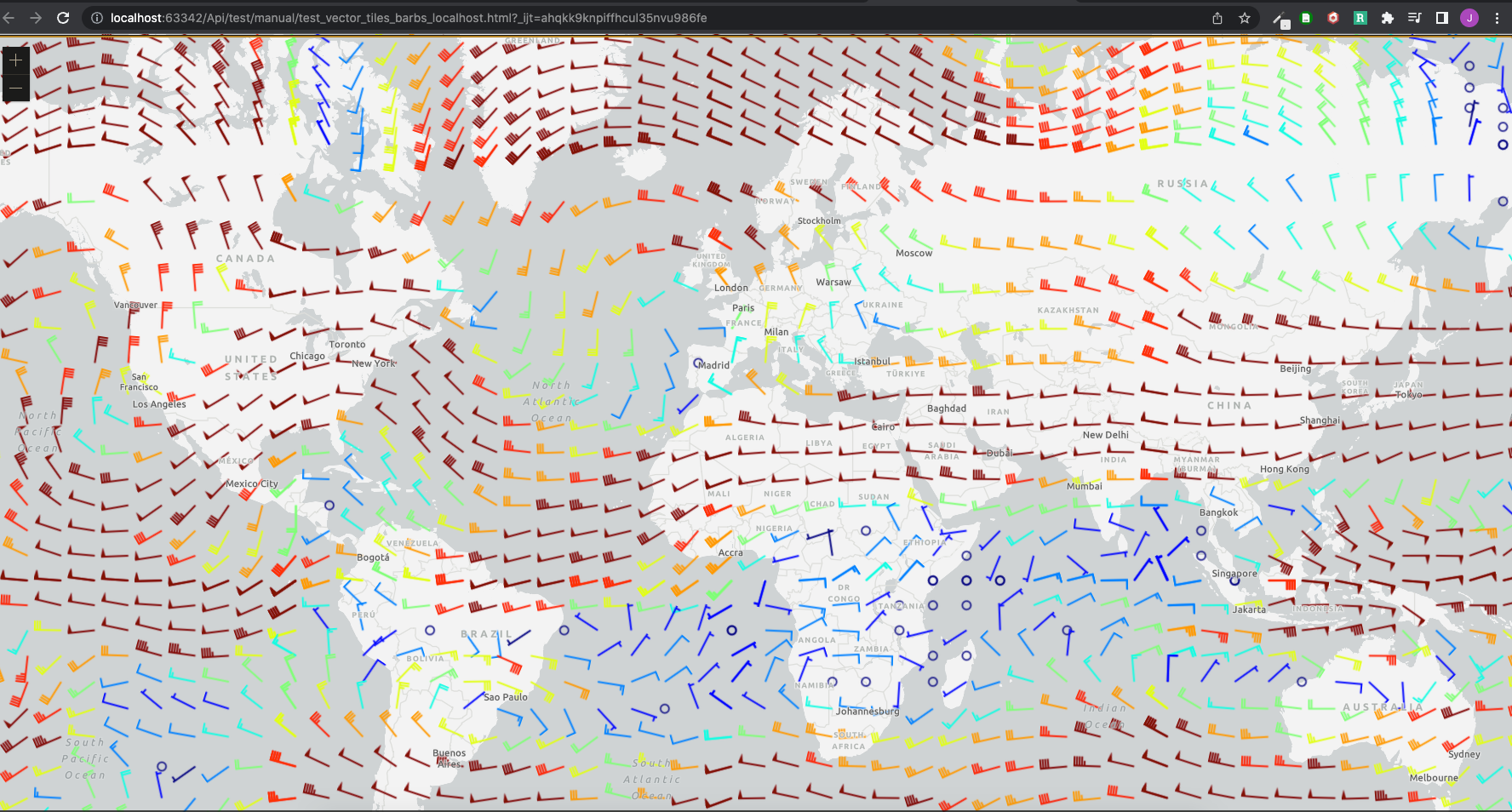

And for a colored version https://api-mm.ncm.gov.sa/mvt/barbs/wind_speed_100hPa:kn/style.json?datetime=now&color=true
Mandatory Fields
| Field | Description | Value | Example |
|---|---|---|---|
parameter |
The parameter for which you want to retrieve the symbols. Available is wind_speed_<level>:kn.
Available altitude levels: 2m - 20000m (continuously), 5ft - 65000ft (continuously)
Available pressure levels (global): 1000hPa, 950hPa, 925hPa, 900hPa, 850hPa, 800hPa, 700hPa, 500hPa, 300hPa, 250hPa, 200hPa, 150hPa, 100hPa, 70hPa, 50hPa, 10hPa
Available flight levels (global): FL20, FL50, FL100, FL140, FL180, FL240, FL300, FL340, FL390, FL450 |
String with the parameter name and unit separated by either a colon or a slash. | wind_speed_100hPa:kn, wind_speed_10m:kn |
Optional Fields
Optional fields can be attached to the query string as follows:
https://...?option_name=<option_value>&...
The following table describes all optional parameters:
| Field | Description | Value | Example |
|---|---|---|---|
color |
Whether to color the wind barbs according to the wind speed colormap. | String. Default: false |
color=true |
datetime |
Date for which the vector data is retrieved. | Dates and times are specified according to the ISO-8601 format (YYYY-MM-DDThh:mm:ssZ). All times are in UTC. Note that the part containing time specifications (Thh:mm:ss) is optional. The default setting is now. For more details see Date/Time Description
|
2018-04-12T12:45Z |
source |
This parameter is used to select a specific source (model) for weather data. | String. Default: mix |
ecmwf-ifs, ncep-gfs, ukmo-um10, etc. |
resolution |
Controls the density of weather symbols per tile. | Two doubles or two integers: <resolution_lat>,<resolution_lon> or <number_lons>x<number_lats> |
resolution=0.1,0.1, resolution=400x300 |
access_token |
Instead of basic authentication, you can opt to use OAuth authentication as described here: OAuth Authentification | String. | eyJhbGciOicCI6 ... y2QT4fwpMeJ |
